Uniform gas distribution is essential to countless industrial processes, as it affords consistent and efficient performance. Achieving even gas flow can improve heat exchange and system reliability.
As with any process, achieving even gas distribution encounters challenges such as pressure drop and channeling, which can hinder operational success. Known to facilitate optimal flow dynamics, woven wire mesh is proven to resolve a lot of these challenges.
At W.S. Tyler, we strive to leverage our 150 years of wire weaving experience to provide engineered solutions that tackle the roadblocks you face head-on. Our Mission? Deliver best-in-class wire mesh that empowers you to help make the world a cleaner, safer place.
This article will take a deep dive into the role of woven wire mesh when attempting to facilitate even gas distribution. It will cover:
- The definition of woven wire mesh
- The main challenges encountered when attempting to achieve even gas distribution
- How woven wire mesh plays a role in achieving even gas distribution
- The specifications that control how well-woven wire mesh disperses gas
What Is Woven Wire Mesh?

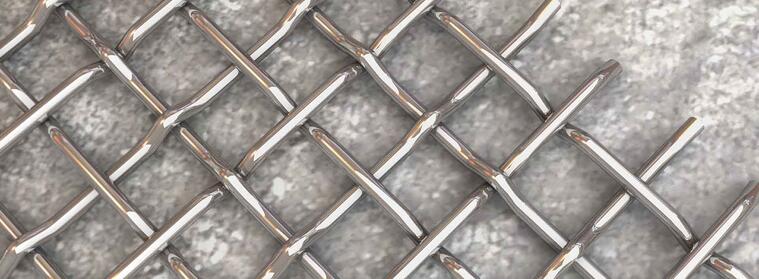

Woven wire mesh is an engineered material crafted from hundreds of interwoven metal wires to form specific patterns, each outfitted with precise pore openings. Using a centuries-old weaving technique, warp and weft wires create intersections that result in a weave with consistent mechanical properties.
This includes tensile strength and dimensional stability.
Several parameters define the performance of woven wire mesh, such as mesh count, wire diameter, and percentage of open area. To ensure your mesh delivers peak performance, each of these parameters can be tailored to the specific needs of your process.
While conventional wires are typically used with 304 or 316 stainless steel wires, woven wire mesh can be woven using a wide range of alloys, depending on the level of durability you need. The alloy you choose will also control how well the mesh performs when subjected to corrosive or high-temperature environments.
What Challenges Are Associated With Gas Distribution?
Uneven gas flow is one of the more persistent challenges engineers face when dealing with gas distribution. This occurrence describes when gases either channel or bypass specific spots of the process, causing inefficient performance and inconsistent results.
Pressure drop is also a significant concern, especially when gas flow isn't managed properly. Poor pressure drop can cause your equipment to use higher levels of energy than expected and increase operation expenses.
Engineers must also be mindful of maldistribution, which can lead to hotspots, hinder performance, and prematurely wear system components.
How Does Woven Wire Mesh Help Regulate Gas Distribution?
One of the better qualities of woven wire mesh is its high customization. This means that it can be engineered to deliver optimal gas distribution to various industrial systems, such as distillation columns and gas filtration units.
The methodically controlled parameters of the weave help the mesh facilitate a consistent flow path that combats gas channeling. To be more specific, the percentage of open area of the weave, when tailored to your process, creates the perfect balance of gas diffusion and flow resistance.
This leads to improved pressure drop.
Its durable properties allow wire mesh to maintain the structural accuracy of the pore openings when subjected to high flow rates and the harshest conditions. This makes the versatile material suitable for applications like gas-liquid separation and catalytic reaction systems.
How Do I Customize My Wire Mesh To Achieve Peak Gas Distribution?
As stated above, virtually every aspect of woven wire mesh can be customized. To ensure peak gas distribution, you must plan each one methodically.
To fine-tune flow rate, experiment with the weave's aperture size. Getting this parameter right ultimately affects optimal distribution regulation.
You will also want to ensure your mesh is strong enough to withstand repeated use, which falls onto the wire diameter of your shoes. This should be balanced with the percentage of open area, which controls flow efficiency.
In other words, balancing the two will ensure your mesh affords an adequate flow of gas without sacrificing durability. It should also be noted that the percentage of open area will help you control pressure drops.
Another key factor in delivering peak gas distribution is achieving optimal flow precision and overgas dispersion. Doing so requires experimentation and implementation of the right weave type.
Now, one of the more important specifications to keep in mind is the mesh's alloy. The alloy you choose will have a substantial impact on how well your mesh withstands harsh environments.
Especially those that subject wire mesh to highly corrosive atmospheres or high temperatures.
You do have the ability to do more in-depth customizations, such as layered mesh solutions and surface treatments.
Maintain Peak Wire Mesh Performance Under Pressure
Utilizing woven wire mesh in a gas distribution system is proven to promote operational efficiency, facilitate uniform gas flow, and eliminate pitfalls like channeling and pressure drop. Customizable in nature, wire mesh offers the durability and precision needed to make it one of the more versatile solutions on the market.
As the journey toward optimal system performance continues, your next step is to learn how woven wire mesh reacts to different pressure loads. Knowing this will give you a better idea of what specifications your mesh needs to deliver accurate and repeatable results.
For over 150 years, W.S. Tyler has been dedicated to delivering high-performing woven wire mesh solutions engineered to enhance the performance, dependability, and efficiency of your systems.
Read the article below to gain insight into what you can expect when your wire mesh is under pressure:
