Without a clear understanding of wire mesh weaves, choosing the right option can be a confusing process. Not knowing the differences between Plain Dutch and Twilled weaves, for example, can lead to selecting the wrong mesh.
This can ultimately cause reduced performance, inefficiencies, or even product failure.
The key is understanding how each weave functions and the strengths and limitations of each. When you know these differentiating factors, you can make informed decisions that support your process and overall product to help avoid costly setbacks.
At W.S. Tyler, we’ve spent over 150 years helping customers make the world cleaner and safer through expertly engineered wire mesh solutions. We believe in sharing knowledge that empowers you to choose the right materials built for your long-term success.
In this article, we will break down the core differences between Plain Dutch and Twilled weaves, explain how each of them work, explore where they are most commonly used, and help you determine which option is the best choice for your application.
Understanding the Importance of Wire Mesh Weaves
Wire mesh isn’t a one-size-fits-all product and the weave type plays a major role in how the mesh performs in different environments. The weave affects everything from flow rate and filtration precision to mechanical strength and flexibility.
Choosing the wrong weave can lead to pressure loss, clogs, and premature wear, especially in demanding applications.
Understanding how different weaves are constructed and their overall function is essential to making the right choice about the type of weave that is necessary for your operation. Whether you need fine particle retention, high flow capacity, or a balance of strength and precision, selecting the right weave is key to optimizing performance and avoiding costly inefficiencies.
As we compare Plain Dutch and Twilled weaves in the sections ahead, we’ll explore how each design handles these challenges and how that translates into practical application benefits.
Looking for more information on minimizing pressure loss? Read the article below:

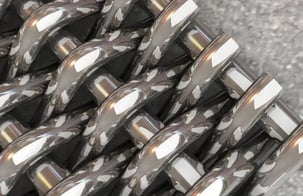

What Is a Plain Dutch Weave?
A Plain Dutch weave is a type of wire mesh designed specifically for fine filtration. Unlike standard weaves where the warp (vertical) and weft (horizontal) wires are the same diameter and spacing, Plain Dutch weaves use thicker warp wires and tightly packed, finer weft wires. This creates a dense, nearly solid mesh structure with very small openings that are often too small to see with the naked eye.
The result is a strong and highly effective filter that provides excellent particle retention, low permeability, and high mechanical strength. Plain Dutch weaves are commonly used in industrial filtration requiring high rigidity and any application where precise separation of fine material is required.

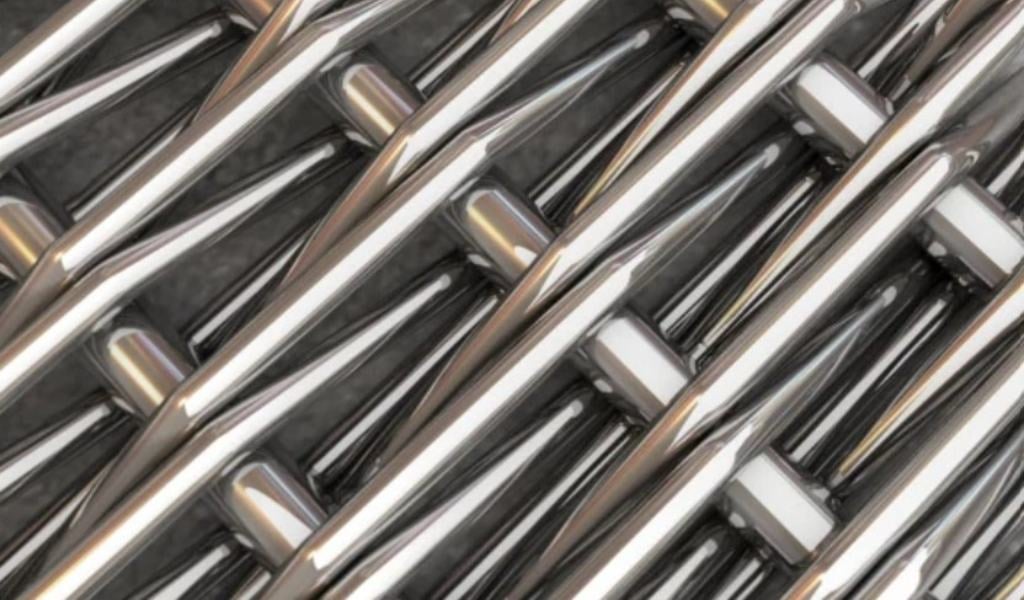

What Is a Twilled Weave?
A Twilled weave is a specific type of Plain Dutch Weave that enhances flexibility and strength by using a distinct over-under pattern. In a traditional plain weave, each weft wire alternates over and under one warp wire. In contrast, a twilled weave arranges each weft wire passing over two and under two warp wires in a staggered pattern, creating a diagonal or “twilled” appearance.
This weaving style allows the mesh to accommodate thicker wire dimensions and tighter weaves without compromising flexibility. As a result, Twilled weaves offer higher strength and finer filtration than Plain Dutch weaves, while still maintaining strong flow characteristics.
Twilled weaves are ideal for high-pressure or heavy filtration applications. While still technically being a Plain Dutch weave, the Twilled variation stands out for its enhanced mechanical performance and structural integrity under demanding conditions.
Plain Dutch vs. Twilled Weave: Key Differences
While both Plain Dutch and Twilled weaves fall under the category of precision filtration meshes, they serve slightly different needs based on how they’re constructed and how they perform under pressure. Understanding the differences can help you select the right mesh for your application.
Here are the key differences:
• Weave Pattern - Plain Dutch weaves use a simple over-under pattern with tightly packed weft wires and thicker warp wires. Twilled weaves, on the other hand, use an over two under two staggered pattern that forms a diagonal structure, allowing for a tighter weave without sacrificing flexibility.
• Strength and Flexibility - Twilled weaves can handle higher mechanical stress thanks to their interlocking structure. This makes them ideal for high-pressure or high-flow applications where durability is a must.
• Filtration Precision - Both weaves offer fine particle filtration, but Twilled weaves can achieve even finer filtration levels due to their tighter construction and still maintain strength.
• Flow Rate - Because of their denser structure, Twilled weaves generally allow slightly lower flow rates than Plain Dutch weaves. If your process demands a higher throughput, Plain Dutch weaves are generally a better fit.
• Use Cases - A Plain Dutch weave is a better choice for general fine filtration where strength and flow must be balanced. A Twilled weave is the general choice in more extreme conditions where pressure, wear resistance, and filtration precision are priorities.
Choosing the Right Weave for Your Wire Mesh Needs
Selecting between a Plain Dutch and Twilled weave ultimately comes down to your application’s specific demands. Every process, whether it involves filtration, separation, or reinforcement, relies on the right balance of flow rate, particle retention, strength and durability.
If your operation calls for efficient flow with fine filtration, a Plain Dutch weave may be the ideal fit. It offers a tight mesh for small particle retention while maintaining adequate permeability for smoother throughput.
If your process involves higher pressure, heavy wear, or finer filtration requirements, a Twilled weave is often the better choice. It’s reinforced structure can handle more stress while still filtering even the smallest particles with precision.
Understanding your environment, pressure levels, materials being filtered, and required filtration ratings will help you make the most informed decision. And having a supplier who understands these variables can make that choice even easier and more reliable.
Take a Closer Look at How Mesh Design Impacts Filtration Performance
Understanding the difference between Plain Dutch and Twilled weaves is essential to getting the most out of your wire mesh. Each weave offers unique advantages in strength, filtration precision, and durability.
Choosing the right one can have a direct impact on your process efficiency and overall product quality.
Now that you know what sets these weaves apart, it's time to take a closer look at how specific mesh constructions can influence performance. Factors like pore consistency, flow rate, and structural support all play a critical role in finding the right fit for your process.
