When it comes to solid-liquid separation, the smallest design details can make or break your process. Nutsche filter plates are often overlooked, yet they play a critical role in ensuring uniform filtration and helping to prevent costly inefficiencies. Poorly designed plates can lead to uneven cake formation, extended cycle times, and even contamination risks, all issues that can directly impact productivity and product quality.
The solution lies in precision engineering. A well-designed Nutsche filter plate doesn’t just support filtration as much as it optimizes it. By considering factors such as mesh type, permeability, and structural integrity, you can achieve faster throughput, cleaner separation, and longer equipment life. These design choices are the foundation of a reliable, high-performance filtration system.
At W.S. Tyler, we’ve spent over 150 years perfecting woven wire mesh solutions that make industrial processes cleaner, safer, and more efficient. Our expertise ensures that every component we deliver meets the highest standards of durability and performance, helping you maintain compliance and consistency in even the most demanding environments.
In this guide, we’ll explore the key considerations for designing Nutsche filter plates. We’ll start by examining how design impacts filtration efficiency, then dive into specifications that enhance performance, and finally share best practices for maintenance and longevity. By the end, you’ll have a clear roadmap for creating filter plates that deliver long-term value.
The Impact of Design of Filtration Efficiency
The design of a Nutsche filter plate directly influences how efficiently solids and liquids separate. A poorly designed plate can lead to uneven cake formation, longer cycle times, and inconsistent product purity. Conversely, a plate engineered with the right geometry, support structure, and filtration media ensures uniform flow distribution, minimizes resistance, and accelerates throughput.
In industries where every minute counts, these design nuances translate into measurable gains in productivity and cost savings.
Several factors determine how well a Nutsche filter plate performs:
- Filtration Media Selection: The media acts as the barrier between solids and liquids. Choosing the wrong weave or porosity can cause particle bypass or clogging, reducing efficiency.
- Plate Geometry and Surface Area: A larger, well-optimized filtration area promotes faster liquid drainage and uniform cake formation.
- Support Structure Integrity: A robust plate prevents deformation or delamination under pressure, maintaining consistent filtration performance.
Operating conditions amplify the importance of design. Under vacuum, the plate must maintain a tight seal to prevent leaks and ensure controlled flow. Under pressure, structural strength becomes critical to withstand forces without compromising the filter media.
High-pressure systems often achieve faster filtration rates, but only if the plate design supports uniform load distribution and prevents media damage.
A well-designed plate promotes a thin uniform filter cake, which is a key factor in achieving high throughput and effective washing. Uneven cakes increase resistance, slow down filtration, and can trap impurities, compromising product purity. Optimizing plate design reduces these risks, ensuring cleaner separation and compliance with stringent quality standards.
Design Specifications That Enhance Performance
The performance of a Nutsche filter plate depends on a combination of material, structural integrity, and filtration characteristics. Each specification impacts filtration speed, product purity, and equipment longevity. Ignoring these details can lead to premature wear, contamination risks, and expensive system suspension.
Choosing the right material is critical for chemical compatibility and corrosion resistance. Common options include:
- 316L Stainless Steel: Ideal for general chemical and pharmaceutical applications due to its strength and corrosion resistance.
- Hastelloy C22: Recommended for highly corrosive environments.
- Glass-Lined Steel: Provides a non-reactive, easy-to-clean surface for ultra-pure processes.
These materials ensure compliance with cGMP and ASME standards while supporting long service life under vacuum or pressure conditions.
Want to learn more about the importance of the filtration media used in Nutsche filters? Check out our blog article below to discover more:

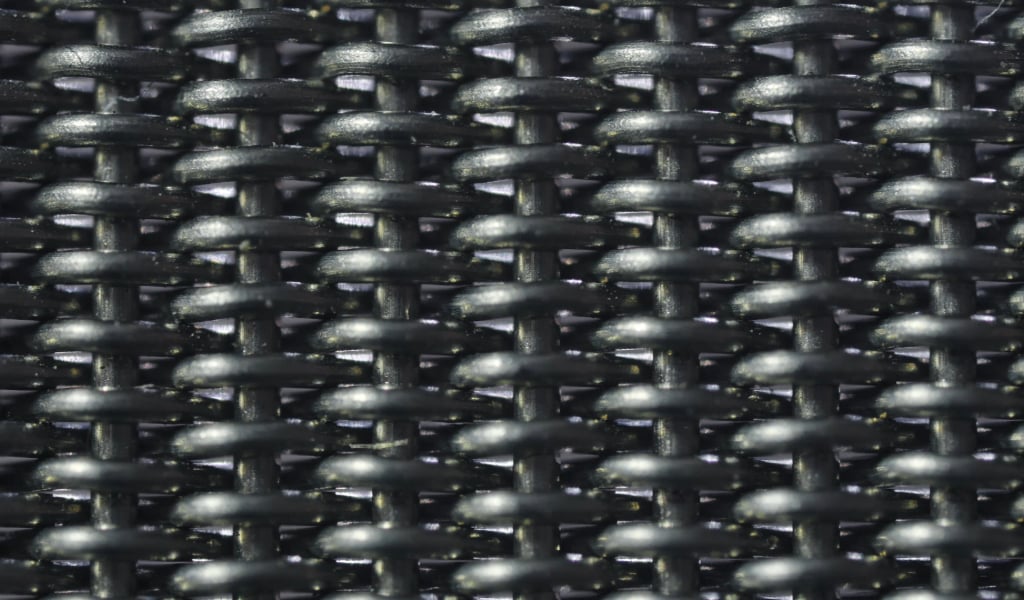

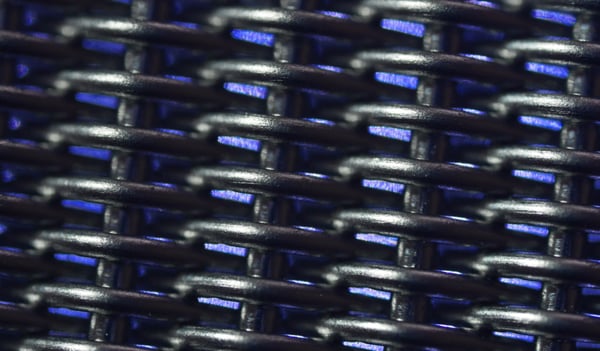

The filter plate typically supports a filtration medium such as woven wire mesh, synthetic cloth, or sintered metal. Porosity must match particle size requirements:
- Fine Mesh (5-20 microns): For high-purity applications requiring precise particle retention.
- Coarser Mesh (40+ microns): For faster flow rates in less critical processes.
Multi-layer laminates, such as POROSTAR, offer uniform permeability and durability, making them ideal for high-pressure operations.
A robust support plate prevents deformation under pressure and maintains even flow distribution. Features like perforated plates, reinforced grids, and hydraulic lowering mechanisms simplify media replacement and cleaning. For agitated Nutsche filters, integrated agitator systems help smooth and wash the cake, improving efficiency and reducing manual handling.
Best Practices for Maintenance and Longevity
Nutsche filter plates are exposed to high pressures, corrosive chemicals, and abrasive solids, making them vulnerable to wear if not properly maintained. Neglecting routine care can lead to plate warping, cracks, and clogged filter media, which are issues that compromise filtration efficiency and increase downtime.
A proactive maintenance strategy not only extends the life of your plates but also ensures consistent product quality and compliance with safety standards.
Schedule routine inspections to identify early signs of damage. Look for:
- Cracks or warping in the plate surface.
- Worn seals and gaskets that could cause leaks.
- Filter media integrity, checking for tears or clogging.
Pressure tests and visual checks should be part of every maintenance cycle to prevent failures during operation.
Clean the filter plate immediately after each batch to prevent residue buildup. For sticky or viscous materials, disassemble the unit and remove solids manually before washing with compatible cleaning agents. Avoid harsh chemicals that can damage stainless steel or glass-lined surfaces. For large-scale operations, consider a Cleaning-In-Place (CIP) system, which automates flushing and rinsing without disassembly, saving time and ensuring thorough cleaning.
Improper handling and operating conditions often shorten plate life. Avoid overloading the filter, which can cause uneven cake formation and excessive pressure stress. Maintain recommended operating pressures and temperatures to prevent structural fatigue. Train operators on correct handling techniques to avoid nicks or scratches that compromise plate integrity.
Implementing Best Practices in Your Process
Designing Nutsche filter plates is about creating a system that delivers consistent, efficient, and safe filtration. We explored how design impacts filtration efficiency, reviewed critical specifications that enhance performance, and outlined maintenance practices that extend plate life.
If you’re evaluating or upgrading your filtration system, start by reviewing your current plate design against the best practices discussed here. Consider whether your material selection, porosity, and structural integrity align with your process requirements. Implementing a proactive maintenance schedule will also help you avoid costly downtime and ensure compliance with industry standards.
At W.S. Tyler, our goal is to help you achieve reliable, high-quality filtration through innovative woven wire mesh solutions. With over 150 years of experience, we understand the challenges of industrial separation and are committed to delivering components that make your operations cleaner, safer, and more efficient.
